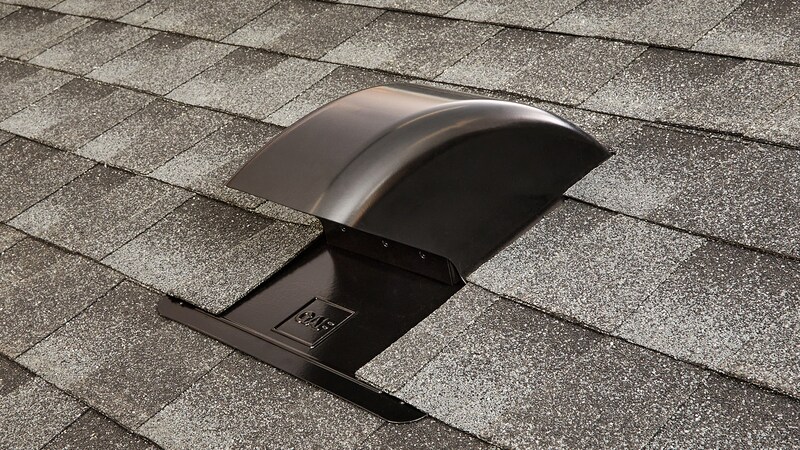

About Master Flow™ Bath & Dryer Rooftop Appliance Vent

The durable, all-metal Master Flow™ Bath & Dryer Rooftop Appliance Vent from GAF is designed to help vent heat and moisture from bathroom exhaust fans, clothes dryers1, and other household appliances through the roof. Its sleek design includes a heavy-duty stainless steel bird/pest screen1, noise-minimizing damper, duct attachment collar, and 4" (102 mm) to 3" (76.2 mm) reducer. The Master Flow™ Bath & Dryer Rooftop Appliance Vent is warrantied against manufacturing defects for up to 50 years or as long as the warranty of the roof cladding adjacent to the vent, not to exceed 50 years2 and is eligible for enhanced warranty coverage when installed by a contractor certified by GAF in connection with a qualifying roofing system.3


Model Description

BDV4BL

 Bath & Dryer Vent 3"-4" Black

BDV4BR

 Bath & Dryer Vent 3"-4" Brown

BDV4GR

 Bath & Dryer Vent 3"-4" Gray

BDV4WW

 Bath & Dryer Vent 3"-4" Weathered Wood

1Do NOT use bird/pest screen or reducer when venting clothes dryers. Consult local building and mechanical codes in your area.

2See GAF Master Flow™ Ventilation Products Limited Warranty for complete coverage and restrictions.

3See GAF System Plus™, Silver Pledge™, and Golden Pledge® Limited Warranties available at gaf.com/warranties for complete coverage and restrictions.

Features & Benefits

4Code requirements may vary. Always review applicable local building and mechanical codes for specific requirements in your area.

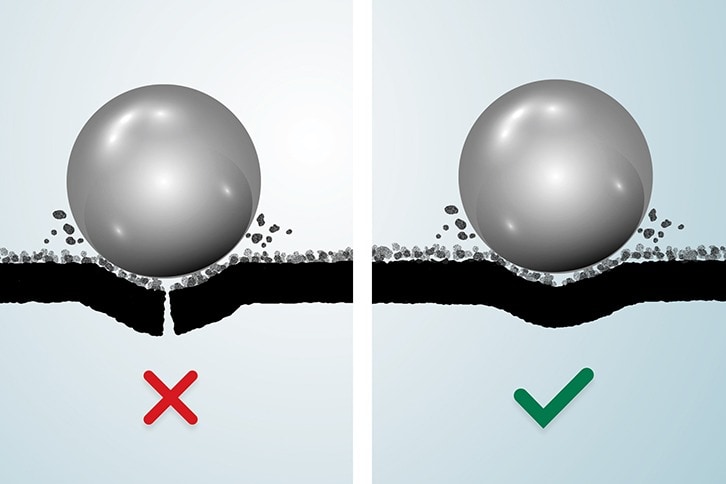

5UL 2218 Class 4 impact-resistance test performed by Certerra Analytical - PRI under controlled laboratory conditions. GAF makes no express or implied warranty about the impact performance of this product against hail. Hail damage is not covered under the limited warranty.

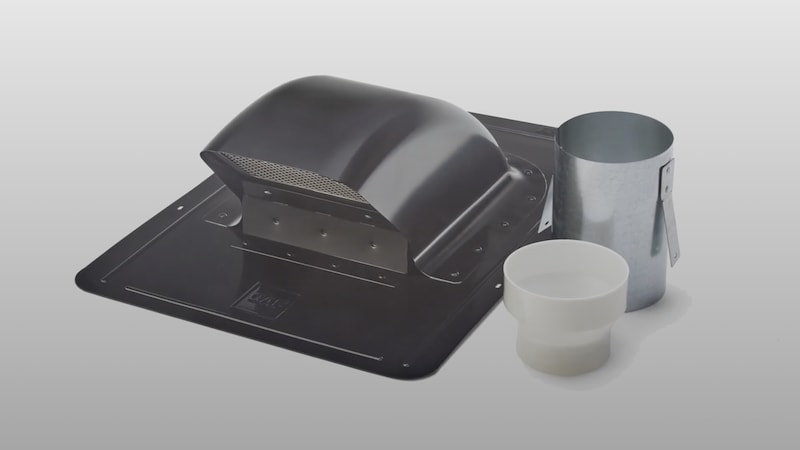

Video thumbnail showing a Bath and Dryer vent on an asphalt shingle roof.

Delivering performance with modern style

Discover the perfect blend of function and design with the Master Flow™ Bath & Dryer Appliance Vent. It's durable build, excellent performance and sleek, modern look make it a truly premium roofing accessory.

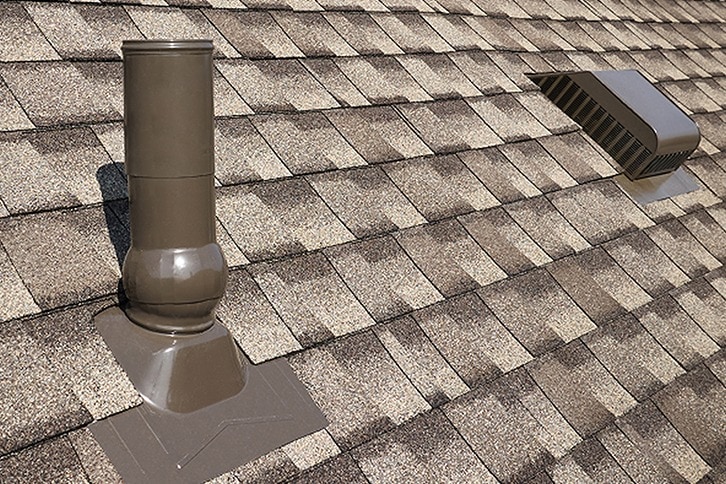

Learn about Master Flow™ Rooftop Accessories

Rooftop accessories like flashing, pipe caps and pipe boots can help prevent water infiltration from on top of the roof. GAF offers factory-made solutions for both to aid installation, improve performance, and elevate aesthetics.
See rooftop accessories
A GAF Rewards card that can be used to help earn reward points on GAF Master Flow rooftop accessory products purchases

Earn GAF Rewards when you buy GAF Master Flow™ rooftop accessory products

Master Flow™ rooftop accessory products are eligible for GAF Rewards points.⁶
View rewards
6GAF Rewards is open to professional roofing contractors, builders and remodeling companies in the U.S. and Canada. For complete terms and conditions, special offers and qualifying GAF products in the U.S. visit gaf.com/rewards and for Canada visit gaf.ca/rewards.

How to install the Master Flow™ Bath & Dryer Rooftop Appliance Vent⁷

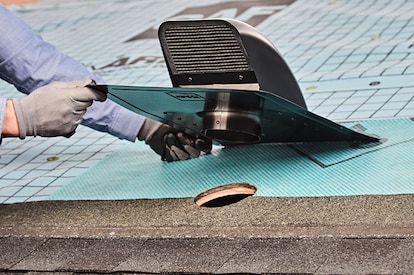

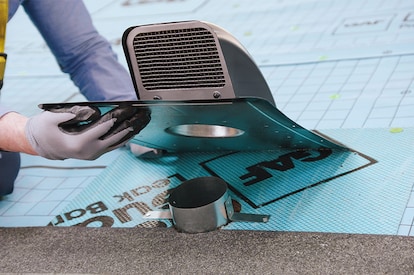

  1. A contractor inserting the vent’s neck into a circular opening in the roof deck

    Step 1

    Cut a 5.5" (140 mm) diameter circular opening in the roof deck, insert the duct attachment collar, and fasten in place. With the "UP" arrow on the flashing pointing towards the roof peak, position the vent over the duct attachment collar.

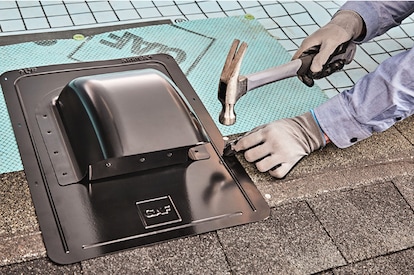

  2. Contractor fastening the vent’s base flashing to the roof

    Step 2

    Fasten the vent's base flashing to the roof deck using the pre-punched nailing slots.

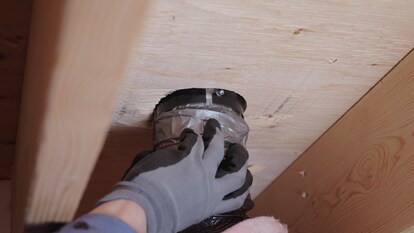

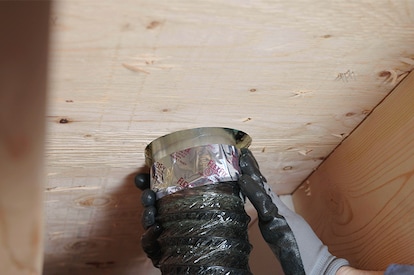

  3. Underneath view of a contractor using the included removable duct collar to hook the vent up to ducts

    Step 3

    Hook up 4" (101.6 mm) or 3" (76.2 mm) round ducts to the vent's duct attachment collar (and reducer if necessary) per local building/mechanical codes in your area.

7Always read full application instructions before using or installing GAF products.

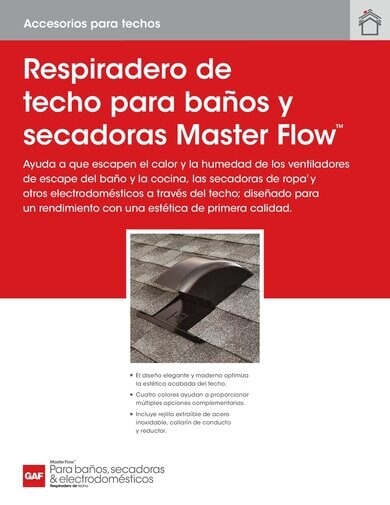

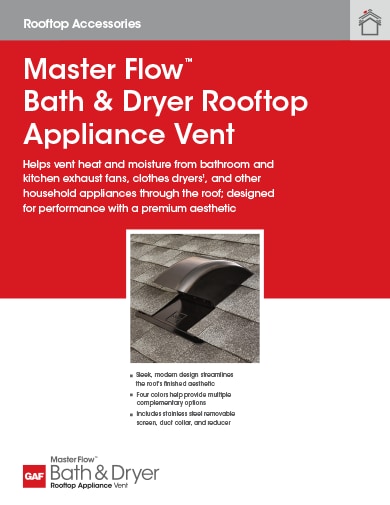

Product Documentation
