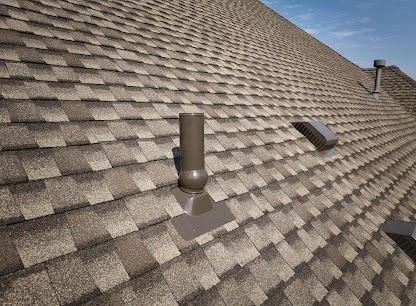

If you've ever looked closely at your roof, you've probably noticed several pipes and other rooftop accessories that cover plumbing pipes and appliance vents. Those pipes and vents serve several functions, ensuring your plumbing system and other household appliances operate correctly, allowing excess heat, moisture and odors to escape.
However, any pipe or accessory that penetrates the roof system has the potential to cause leaks if it isn't adequately protected. Leaks can be problematic, as they can encourage the growth of mold and mildew and weaken the structural integrity of your roof. Properly sealing these penetrations is key to protecting the interior of your home from moisture. Rooftop accessories provide a tight seal to prevent leaks while improving the appearance of unsightly pipes and vents.
GAF offers three rooftop accessories designed to protect your roof from potential leaks and maintain proper ventilation.
Master Flow™ Pivot™ Pipe Boot Flashing
One of the most vulnerable parts of your roof is the penetrations where plumbing vent pipes protrude through your roof. If they aren't sealed correctly with the proper flashing and rooftop accessories, you may be vulnerable to water intrusion.
GAF Master Flow™ Pivot™ Pipe Boot Flashing protects pipe penetrations by fully encapsulating them, providing a streamlined, finished appearance. This ensures a proper seal, reducing the risk of leaks. In addition, their durable, galvanized steel exterior has no exposed seals or gaskets and doesn't require caulking, which can degrade over time.
The pipe boot fits schedule 40 PVC, ABS, and steel pipes with diameters of 1.5 inches (38.1 mm), 2 inches (50.8 mm), 3 inches (76.2 mm), and 4 inches (101.6 mm).
Pivot™ is available in four colors: black, weathered wood, brown, and gray to ensure a seamless match with your shingles... It's also approved by the state of Florida and meets certain FORTIFIED Roof™ requirements.
Pivot Pipe Boot Flashing Benefits
- No exposed seals, gaskets, or caulking that can degrade over time or be damaged by rodents, causing leaks.
- Completely encapsulates plumbing vent pipes, giving them a clean look that matches your roof's aesthetic.
- Passes the 110 mph wind-driven rain test per TAS-100(A) and UL 2218 Class 4 impact-resistance test.
- Extra-large 3" (76.2 mm) flashing on all sides helps reduce the risk of water infiltration and makes for easy installation.
- Available in four colors to help blend in with today's most popular shingle colors.
- Up to a 50-year warranty against leaks caused by manufacturing defects or ordinary wear and tear (or as long as the warranty on the adjacent roof cladding).
- Enhanced warranty protection is available when installed by a GAF-certified* contractor in connection with a qualifying roof system.
Master Flow™ Versa Cap Adjustable Pipe Cap
Besides vent pipes, other vulnerable penetrations include rooftop flues, hot stacks, and B-vents for exhaust from gas appliances. These must also be protected by rooftop accessories to prevent water intrusion.
GAF Master Flow™ Versa Cap Adjustable Pipe Cap provides a neat, finished appearance for these vents. It's made out of aluminum, so it resists rust, which can detract from the look of your roof. It fits pipes from 2 7/8 inches (73 mm) to 10 7/8 inches (276 mm) in diameter and features a positive draft design that helps prevent clogs.
Versa Cap Adjustable Pipe Cap Benefits
- Easy to install and features an adjustable clamp to ensure a secure fit.
- Rust and corrosion resistant.
- Positive draft design to help avoid clogging.
- Large variety of pipe sizes, from 2 7/8 inches (73 mm) to 10 7/8 inches (276 mm).
Master Flow™ Bath & Dryer Rooftop Appliance Vent
Several household appliances vent heat and moisture through the roof, including bathroom and kitchen exhaust fans, range hoods, and clothes dryers. These penetrations must also be protected by rooftop accessories to prevent moisture intrusion and allow inside heat, moisture and odors to escape.
GAF Master Flow™ Bath & Dryer Rooftop Appliance Vent protects and is a sleek, modern design to improve your home's curb appeal. It's made out of galvanized steel and features a stainless-steel removable screen and duct collar, making maintenance easier, and a reducer to ensure a tight fit on round ducts of 4 inches (102.6 mm) and 3 inches (76.2 mm). It also comes in four colors to match popular shingles.
Bath & Dryer Rooftop Appliance Vent Benefits
- Provides a modern, elevated finished appearance on your roof.
- Passes 110-mph wind-driven rain testing per TAS 100(A).
- Meets ventilation codes that require a minimum of 12.5 square inches (26,458 mm²) of net-free ventilation area for rooftop appliance vents.
- Available in four colors to complement today's popular shingle colors: black, brown, weathered wood, and gray.
- Durable galvanized steel exterior protects against the elements.
- Up to a 50-year limited warranty against manufacturing defects (matching the warranty length of the surrounding roof cladding).
- Enhanced warranty protection is available when installed by a GAF-certified* contractor in connection with a qualifying roof system.
Protecting Your Roof with the Right Accessories
Rooftop accessories, such as GAF Master Flow™ Pivot™ Pipe Boot Flashing, Versa Cap Adjustable Pipe Cap, and Bath & Dryer Rooftop Appliance Vent, are specifically designed to keep water or moisture out of your roof, attic and home while providing a complementary aesthetic to improve the curb appeal of your home. Each product is designed to focus on a particular type of penetration, ensuring the most reliable and best protection against water intrusion.
For more information on our complete line of rooftop accessories, visit our Rooftop Accessories page or find a GAF-certified* local roofing contractor.
